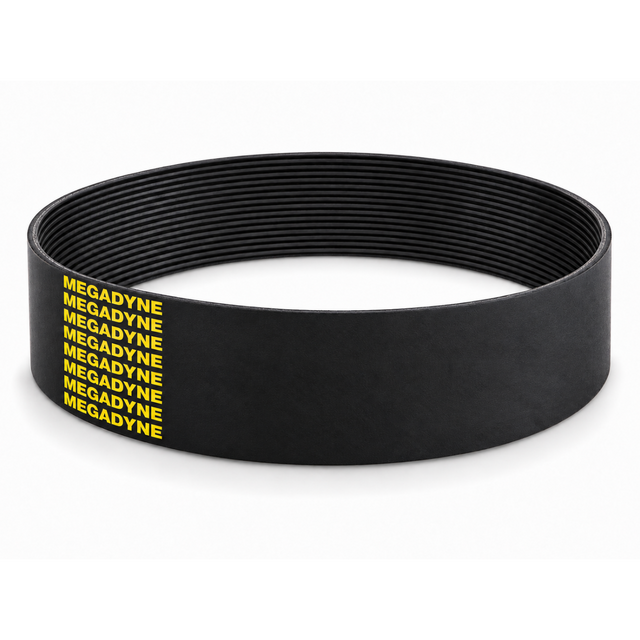

6PK650 Megadyne PV EPDM Helicord Ribbed Belt - 6 Ribs
- PK
- 6 ribs
- 650mm
- made to order, 2–3 weeks from Italy
6PK650 Megadyne PV EPDM Helicord Ribbed Belt - 6 Ribs is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
6PK650 Megadyne PV EPDM Helicord Ribbed Belt - 6 Ribs
Made to order: 2 to 3 weeks from Italy. This belt isn’t held in UK stock. We order it from Megadyne in Italy when you buy, and it usually reaches you in 2 to 3 weeks. Need it sooner? Call 020 8138 2848 and we’ll check for an alternative.
The Megadyne PV 6PK650 is a PK-profile ribbed (Poly-V) belt with 6 ribs at a 3.56mm rib pitch, an effective length of 650mm (25.6″) and an overall width of about 21.4mm.
This is Megadyne’s EPDM Helicord version of the PV ribbed belt. The EPDM rubber compound stands up to heat and ageing better than conventional rubber, for a longer service life, and the Helicord tension cord keeps the belt’s length stable under load. Like all Megadyne PV belts, it flexes around small pulleys and runs quietly with low vibration.
Specification
| Brand and range | Megadyne PV EPDM Helicord |
|---|---|
| Profile | PK |
| Number of ribs | 6 |
| Rib pitch | 3.56mm |
| Effective length | 650mm (25.6″) |
| Belt width | about 21.4mm |
| Construction | EPDM rubber, Helicord tension cord |
| Availability | Made to order, 2 to 3 weeks from Italy |
Check it’s the right belt
- The old belt should be marked 6PK650 (or 6 PK 650, or 6K650). 6 is the number of ribs, PK the profile and 650 the effective length in mm.
- Count the ribs across the underside of the old belt: this one has 6.
- Check the rib pitch: PK ribs are 3.56mm apart. A belt with the wrong profile won’t seat in the pulley grooves.
Not sure it’s the right one? Call 020 8138 2848 and we’ll help you find the right belt before you order.
-
Section
-
Range
-
Construction
-
Effective length (mm)
-
Pitch (mm)
-
Belt width (mm)
-
Ribs
