Taper Lock Bush 1108 - 11/16" Bore
- 1108 bush
- 11/16" bore
- imperial keyway
Taper Lock Bush 1108 - 11/16" Bore is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
Taper Lock Bush 1108 - 11/16" Bore
Taper Lock Bush 1108 - 11/16" Bore is backordered and will ship as soon as it is back in stock.

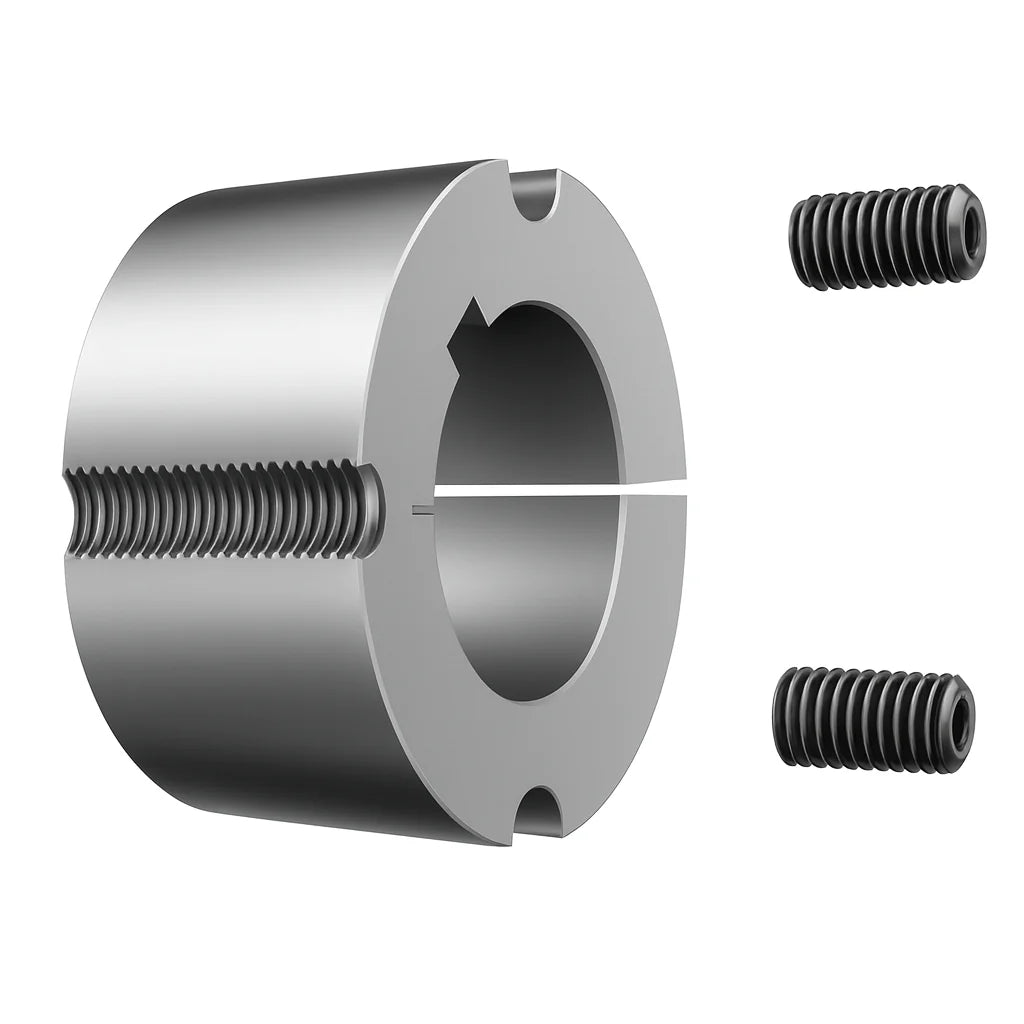

This is a 1108 taper lock bush with a 11/16" bore (17.5mm, imperial) and an imperial keyway to BS 46. It fits any pulley, sprocket, coupling or hub made for a 1108 bush.
Taper lock bushes lock a component to its shaft without machining: the bush comes ready-bored and keywayed, and as you tighten the set screws the taper closes onto the shaft. It’s supplied with its set screws.
Specification
| Bush size | 1108 |
|---|---|
| Bore | 11/16" (17.5mm) |
| Keyway | Imperial, standard for the bore |
| Outside diameter | about 38mm |
| Length | about 22.3mm |
| Bore range for this size | 9mm to 28mm (metric) |
| Material | Cast iron |
Check it’s the right bush
- The bush size is stamped on the bush and usually on the pulley or sprocket hub: this is a 1108.
- Measure the shaft: this bush is for a 11/16" shaft (17.5mm). Metric and imperial bores aren’t interchangeable.
Need a different bore? The nearest imperial bores in a 1108 bush are 1108 x 5/8" and 1108 x 3/4". Not sure? Call 020 8138 2848 and we’ll help you find the right bush.
-
Bore type
-
Bush size
