Timing belts Open length · Polyurethane imperial

Imperial · Polyurethane · Steel cord

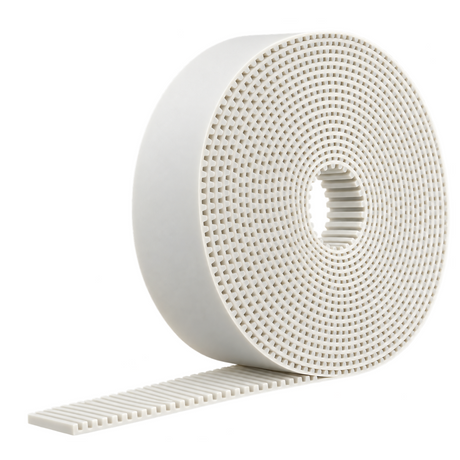

Polyurethane open length timing belting in imperial profiles, cut to the length you need. It combines the standard MXL, XL, L, H and XH tooth shapes with the strength, low stretch and oil resistance of polyurethane, for linear drives, positioning systems and machinery built to inch sizes.

Imperial profiles at a glance

Profile Tooth pitch Typical uses
MXL 0.080in (2.032mm) Very small, precise drives
XL 1/5in (5.08mm) Light linear drives
L 3/8in (9.525mm) Medium linear drives and conveyors
H 1/2in (12.7mm) Heavier drives
XH 7/8in (22.225mm) High load drives

Reading the code: the number after the profile is the width in hundredths of an inch, so L-050 is 1/2in (12.7mm) wide.

  • What we needThe profile, the belt width and the length you need. The profile and width are usually printed on the back of the belt.
  • No markings?Measure the distance between teeth and the belt width. Our how to measure guide shows you how.
  • Still not sure?Call 020 8138 2848 with the machine details or a photo of the belt and we’ll find the right one.
  • Buying for a business?Open a trade account for trade pricing on maintenance stock and repeat orders.
