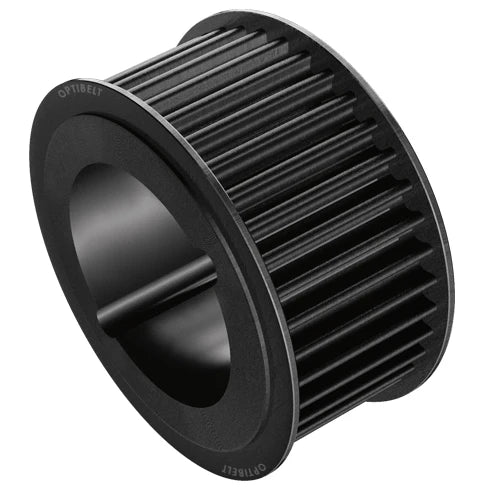

30-8M-50 HTD 8M Taper Lock Timing Pulley - 30 Teeth, 50mm, 1615 Bush
- HTD 8M
- 30 teeth
- 76.4mm pitch diameter
- 1615 bush
30-8M-50 HTD 8M Taper Lock Timing Pulley - 30 Teeth, 50mm, 1615 Bush is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
30-8M-50 HTD 8M Taper Lock Timing Pulley - 30 Teeth, 50mm, 1615 Bush
30-8M-50 HTD 8M Taper Lock Timing Pulley - 30 Teeth, 50mm, 1615 Bush is backordered and will ship as soon as it is back in stock.
The 30-8M-50 is a unflanged HTD 8M timing belt pulley with 30 teeth at a 8mm pitch, for 50mm wide 8M belts.
It takes a 1615 taper lock bush (sold separately), for shafts from 14mm to 42mm in standard metric bores.
Specification
| Part number | 30-8M-50 |
|---|---|
| Profile | HTD 8M (8mm pitch) |
| Number of teeth | 30 |
| Pitch diameter | 76.39mm |
| Outside diameter | about 75.0mm |
| Belt width | 50mm |
| Flanges | No |
| Bush size | 1615 taper lock (sold separately) |
Check it’s the right pulley
- 30 is the number of teeth, 8M the profile and 50 the belt width in mm.
- Count the teeth on the old pulley: this one has 30.
- The profile has to match your belt exactly. 8M won’t mesh with other profiles, even ones with a similar pitch.
Not quite the right size? Not sure? Call 020 8138 2848 and we’ll help you find the right pulley.
-
Section
-
Pitch (mm)
-
Belt width (mm)
-
Teeth
-
Pitch diameter (mm)
-
Bore type
-
Bush size
