DT5-940-10 Optibelt Alpha Power Polyurethane Double-Sided Timing Belt
- DT5
- 188 teeth
- 940mm pitch length
- 10mm wide
DT5-940-10 Optibelt Alpha Power Polyurethane Double-Sided Timing Belt is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
DT5-940-10 Optibelt Alpha Power Polyurethane Double-Sided Timing Belt

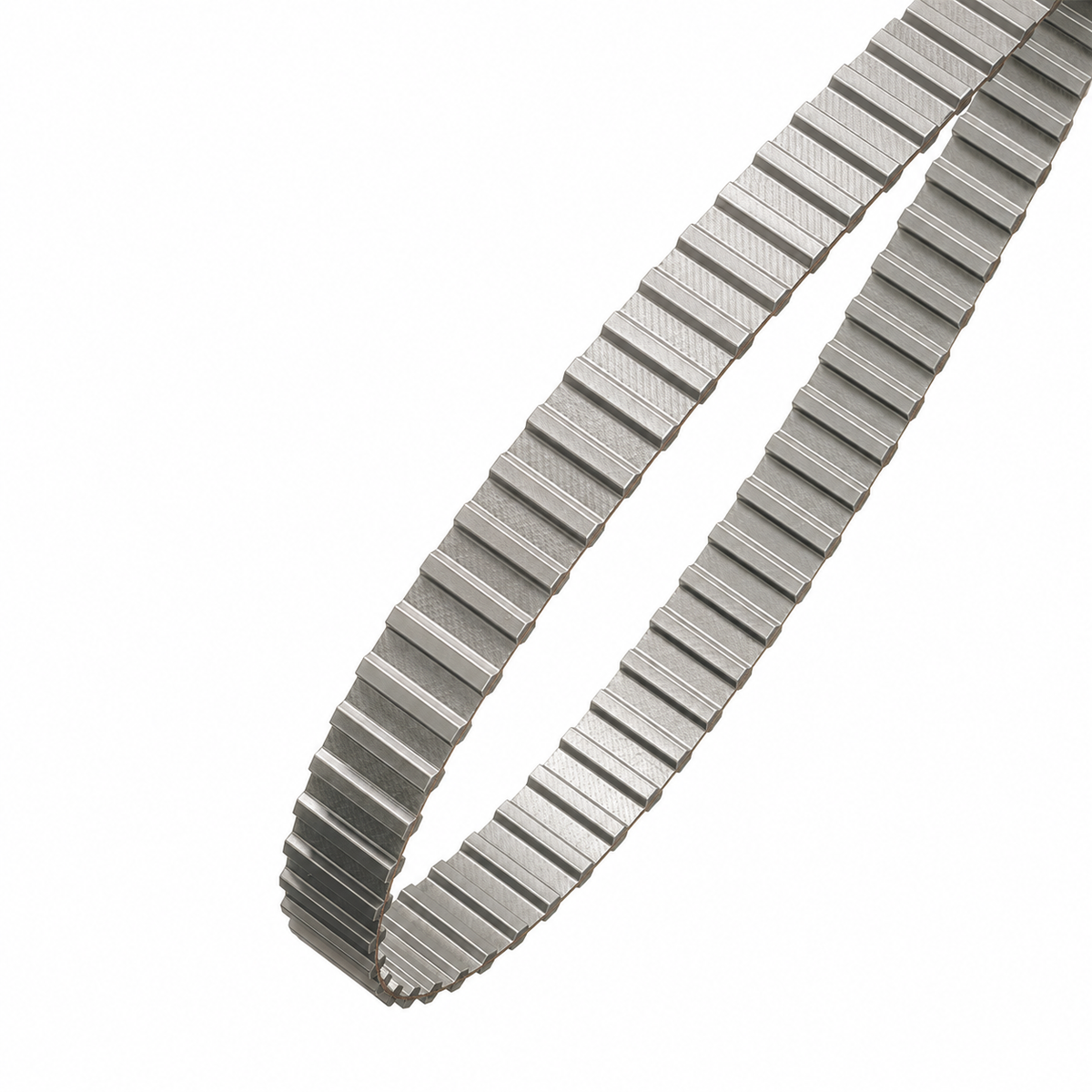

The Optibelt Alpha Power DT5-940-10 is a double-sided T5 polyurethane timing belt with a 5mm pitch, a 940mm pitch length, 188 teeth on each side and a width of 10mm. It’s made by Optibelt, our premier brand.
It has teeth on both sides, so it can drive pulleys from either face.
Optibelt Alpha Power is Optibelt’s high-performance polyurethane timing belt range, built for drives that need more power in a compact width. Polyurethane timing belts have a wear-resistant thermoplastic polyurethane body with steel tension cords, so they hold their length, keep exact timing with no slip, need no lubrication and resist oil, grease and abrasion.
Specification
| Brand and range | Optibelt Alpha Power |
|---|---|
| Profile | DT5 (double-sided) |
| Tooth pitch | 5mm |
| Pitch length | 940mm |
| Number of teeth | 188 each side |
| Width | 10mm |
| Material | Polyurethane, steel tension cords |
Check it’s the right belt
- The old belt should be marked DT5-940-10 (or DT5 940 10); Dunlop/Medway mark double-sided belts T5-940-10 DD. 940 is the pitch length in mm and 10 the width in mm.
- If the marking has worn off, count the teeth: this belt has 188. Multiply by 5mm to get the pitch length.
- It runs on T5 pulleys. T5 and AT5 are not interchangeable.
Not quite the right size? The nearest sizes in this width are DT5-900-10 and DT5-1100-10. Not sure? Call 020 8138 2848 and we’ll help you find the right belt.
-
Section
-
Range
-
Construction
-
Pitch / datum length (mm)
-
Pitch (mm)
-
Belt width (mm)
-
Teeth
