HP-S8M-1040-50 Bando HP-STS Super Torque Timing Belt
- S8M
- 130 teeth
- 1040mm pitch length
- 50mm wide
HP-S8M-1040-50 Bando HP-STS Super Torque Timing Belt is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information

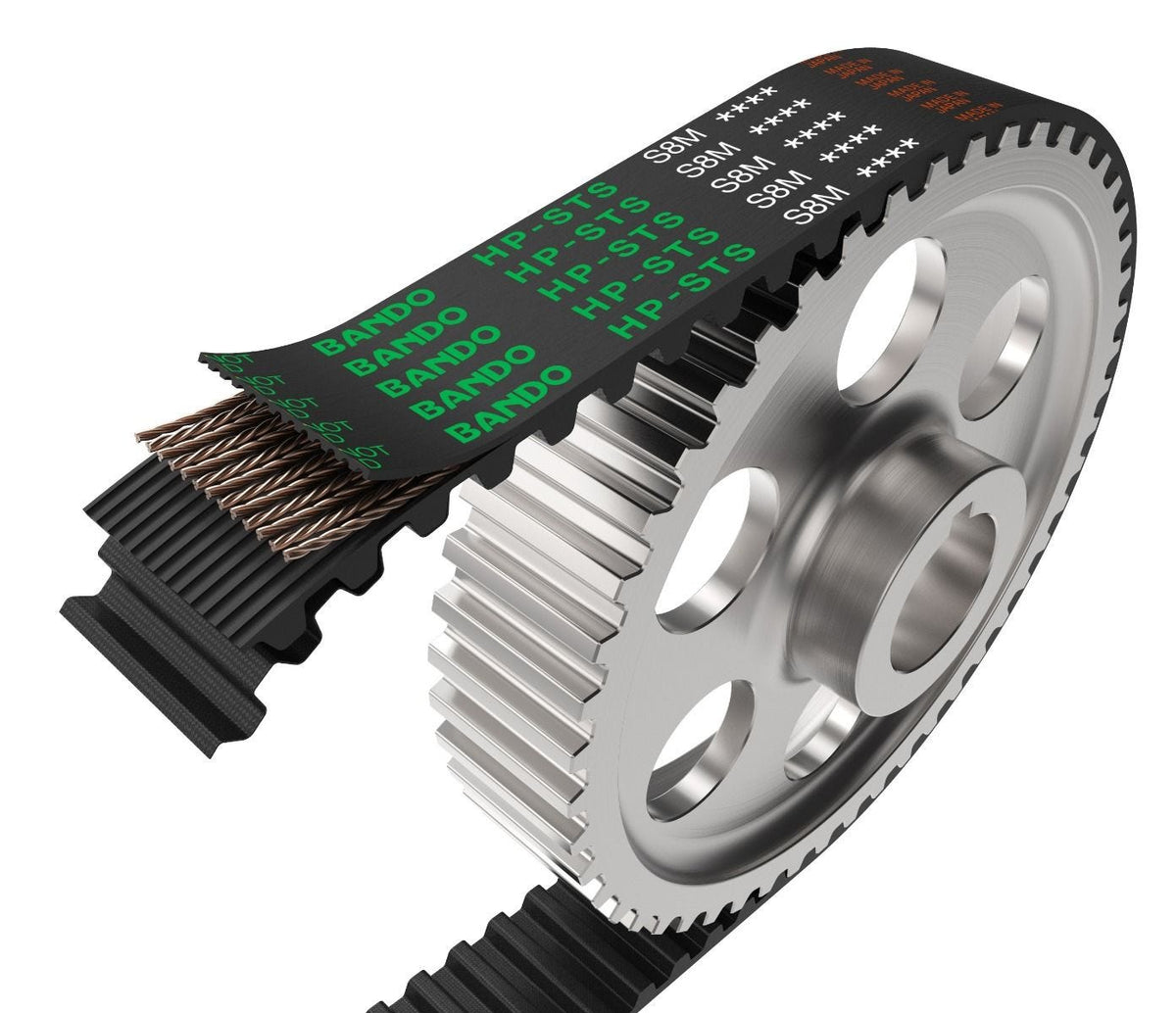

HP-S8M-1040-50 Bando HP-STS Super Torque Timing Belt
The Bando HP-STS Super Torque HP-S8M-1040-50 is an S8M timing belt with a 8mm pitch, a 1040mm pitch length, 130 teeth and a width of 50mm.
Bando HP-STS is the high-power version of the Super Torque Synchronous belt, for drives that need more torque in the same width. It keeps the rounded STS tooth that minimises the polygon effect and noise, and runs on standard S-profile (STD / STPD) pulleys.
Specification
| Brand and range | Bando HP-STS Super Torque |
|---|---|
| Profile | S8M |
| Tooth pitch | 8mm |
| Pitch length | 1040mm |
| Number of teeth | 130 |
| Width | 50mm |
| Fits pulleys | S8M (STD / STPD) |
Check it’s the right belt
- The old belt should be marked HP-S8M-1040-50 (or 1040 S8M 50). 1040 is the pitch length in mm and 50 the width in mm.
- If the marking has worn off, count the teeth: this belt has 130. Multiply by 8mm to get the pitch length.
- S-profile (STD) belts have a different tooth shape from HTD (M) belts and need S-profile pulleys.
- Also available as Optibelt STD S8M-1040-50.
Not quite the right size? The nearest sizes in this width are HP-S8M-1032-50 and HP-S8M-1056-50. Not sure? Call 020 8138 2848 and we’ll help you find the right belt.
-
