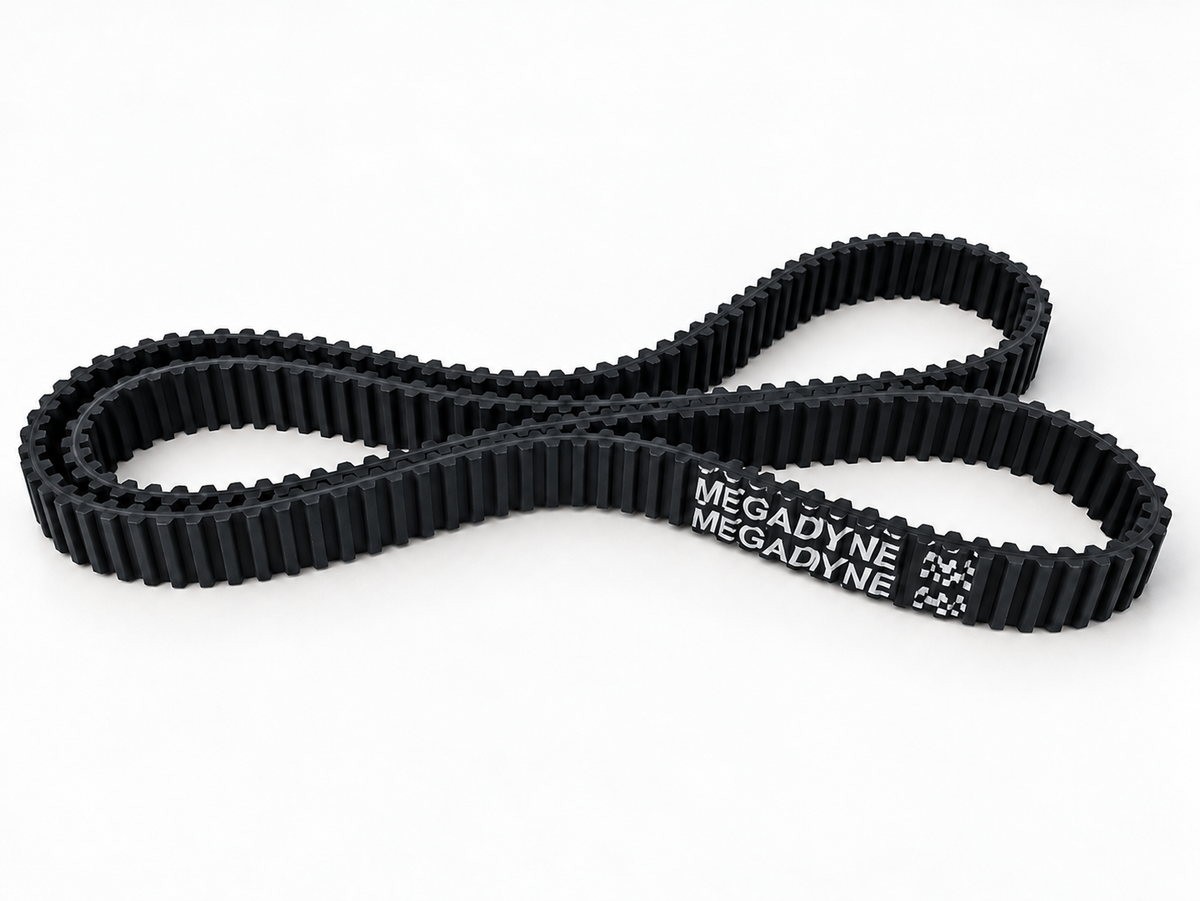

2000-RPP8 DD-20 Megadyne RPP Double-Sided Timing Belt
- RPP8 DD
- 250 teeth
- 2000mm pitch length
- 20mm wide
2000-RPP8 DD-20 Megadyne RPP Double-Sided Timing Belt is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
2000-RPP8 DD-20 Megadyne RPP Double-Sided Timing Belt
The Megadyne RPP 2000-RPP8 DD-20 is a double-sided 8mm-pitch RPP timing belt with a 2000mm pitch length, 250 teeth on each side and a width of 20mm. It runs on RPP and HTD 8M pulleys.
It has teeth on both sides, so it can drive pulleys from either face for serpentine and multi-shaft drives where shafts turn in opposite directions.
Megadyne Isoran RPP timing belts have a polychloroprene body, a fibreglass tension cord and nylon fabric on the teeth. The parabolic RPP tooth runs quietly and carries more load than a standard trapezoidal belt, and the belts are maintenance-free and need no lubrication.
Specification
| Brand and range | Megadyne RPP (Isoran) |
|---|---|
| Profile | RPP8 DD (D8M) |
| Tooth pitch | 8mm |
| Pitch length | 2000mm |
| Number of teeth | 250 each side |
| Width | 20mm |
| Fits pulleys | RPP / HTD 8M |
Check it’s the right belt
- The old belt should be marked 2000-RPP8 DD-20 (or 2000 RPP8 DD 20); other brands call this D8M. 2000 is the pitch length in mm and 20 the width in mm.
- If the marking has worn off, count the teeth on one side: this belt has 250. Multiply by 8mm to get the pitch length.
Not quite the right size? The nearest sizes in this width are 1904-RPP8 DD-20 and 2200-RPP8 DD-20. Not sure? Call 020 8138 2848 and we’ll help you find the right belt.
-
