LB34 / 864 Mitsuboshi Orange Label V-Belt
- LB section
- 864mm effective length
LB34 / 864 Mitsuboshi Orange Label V-Belt is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
LB34 / 864 Mitsuboshi Orange Label V-Belt
LB34 / 864 Mitsuboshi Orange Label V-Belt is backordered and will ship as soon as it is back in stock.

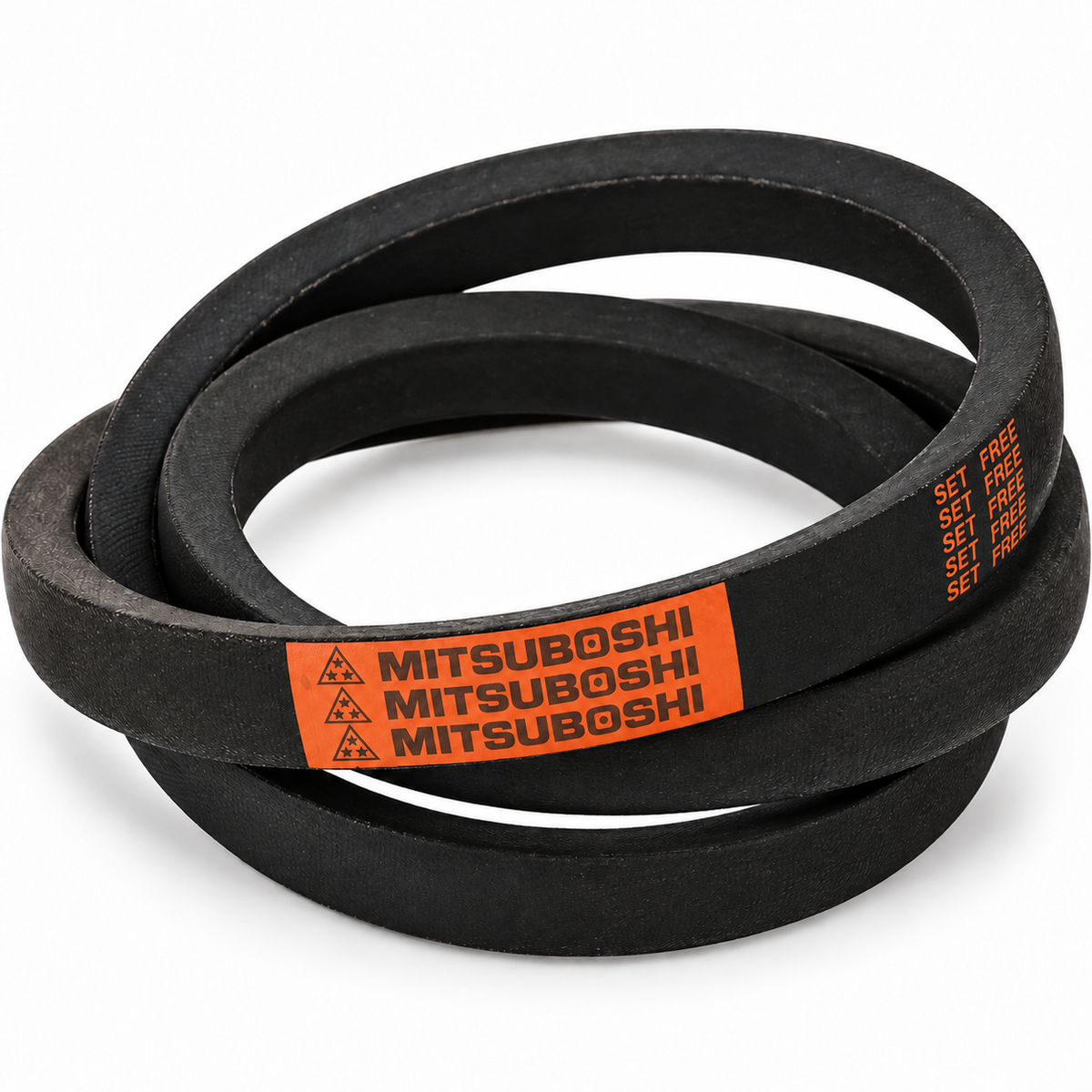

The Mitsuboshi Orange Label LB34 is an LB section agricultural V-belt with a 34″ (864mm) effective length. It’s made by Mitsuboshi for combine harvesters, balers, mowers and other farm machinery, and is often the original fit on Japanese-built machines.
Orange Label belts are thinner than standard industrial V-belts, so they bend more easily round small pulleys, idlers and tensioners. They’re built for harsh working conditions, with good resistance to heat and cracking.
Specification
| Brand and range | Mitsuboshi Orange Label |
|---|---|
| Section | LB |
| Effective length (Le) | 864mm (34″) |
| Construction | Low profile, agricultural |
Check it’s the right belt
- The old belt should be marked LB34. The letters are the section and the number is the effective length in inches.
- Orange Label belts are thinner than classical belts, so match the LB code rather than fitting a classical B belt in its place.
- Many machines list this belt under the machine maker’s part number. If that’s all you have, call us with it.
Not quite the right length? We also stock LB78, or see all Mitsuboshi belts. Not sure? Call 020 8138 2848 and we’ll help you find the right belt.
-
