LB75 / 1905 Mitsuboshi Super AG-X V-Belt
- 16.5mm wide
- 9.3mm deep
- 1905mm effective length
- Bando SB75-W800
LB75 / 1905 Mitsuboshi Super AG-X V-Belt is backordered and will ship as soon as it is back in stock.
Measuring Your Belt
Measuring Your Belt
Check the markings first. Most belts have their size printed on the back, for example A24, SPZ1000 or 8PK1200. Type that code into the search bar to find the exact match.
Markings worn off? Measure across the top of the belt for the width, and its depth. For the length, wrap a piece of string round the belt, mark where it meets, then lay the string flat and measure it.
Timing or ribbed belt? Count the teeth or ribs, and measure the gap between them.
Full step-by-step guide: How to measure your belt →
Still not sure? Call 020 8138 2848 and we’ll identify it for you.
Delivery and Shipping
Delivery and Shipping
We ship across the UK and worldwide. Choose an economical service if you can wait a few days, or express if the machine is stood still until the belt arrives. Delivery costs are worked out at checkout based on the weight of your order and where it's going. More Shipping Information
LB75 / 1905 Mitsuboshi Super AG-X V-Belt
LB75 / 1905 Mitsuboshi Super AG-X V-Belt is backordered and will ship as soon as it is back in stock.

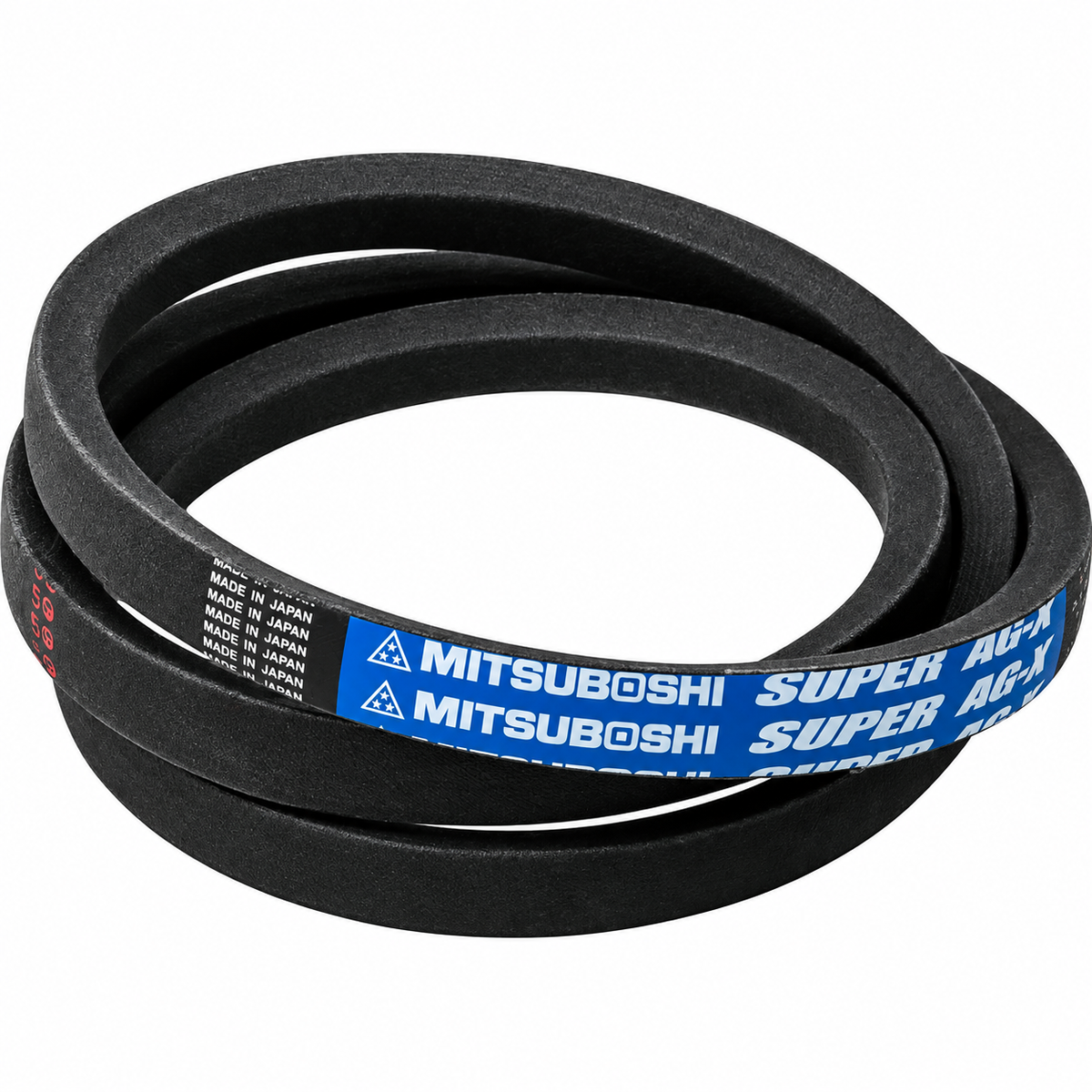

The Mitsuboshi Super AG-X LB75 is an LB section agricultural V-belt, 16.5mm wide with a 75″ (1905mm) effective length. It’s the equivalent of the Bando SB75-W800, and is made for combine harvesters, balers and other farm machinery working in tough conditions.
Super AG-X builds on Mitsuboshi’s Orange Label agricultural belt, with an aramid cord, a new cover fabric and short-fibre reinforced rubber. That gives it better resistance to wear, slip and cracking under heavy and shock loads, and a longer life, including in cold weather.
Specification
| Brand and range | Mitsuboshi Super AG-X |
|---|---|
| Section | LB |
| Top width | 16.5mm |
| Height | 9.3mm |
| Effective length (Le) | 1905mm (75″) |
| Bando equivalent | SB75-W800 |
| Construction | Wrapped, aramid cord, chloroprene rubber |
| Temperature range | −30 to 90°C |
| Maximum belt speed | 25m/s |
| Electrically conductive | Yes |
Check it’s the right belt
- The old belt should be marked LB75, or Bando SB75-W800. The letters are the section and the number is the effective length in inches.
- Agricultural belts are thinner than classical belts, so match the LB code rather than fitting a classical B belt in its place.
- Many combines and balers list this belt under the machine maker’s part number. If that’s all you have, call us with it.
Not quite the right length? The nearest sizes are LB69 and LB79, or see all Mitsuboshi belts or Bando W800 belts. On agricultural drives, check the idlers and tensioner bearings when you change the belt, as a seized idler will quickly wreck a new one. Not sure? Call 020 8138 2848 and we’ll help you find the right belt.
-
